This is a collection of random CAD projects I’ve developed for myself over the years.
If you need support with 3D printing these models - please get in touch here!
STL file for shelf end bracket. Designed for use with 12.5mm (1/2” nominal) thickness plywood. Must also use foam tape to generate interference between plywood and bracket.
STL file of vertical / upright table stand for Bang & Olufsen BeoLab 4000 loudspeaker. This part precisely imitates the original plastic table stand offered by B&O. This table stand is designed to match the BeoLab 4000 speaker with the appropriate angle and height of BeoSound Overture-based music systems.
STL file of horizontal table stand for B&O BeoLab 4000 loudspeaker. This is an original design, intended to place the BeoLab 4000 horizontally and at a slight upward angle. Best when the speaker is typically sat below height of the ear in listening position. This stand is best used when speakers are mounted lower than usual relative to ear-height.
Slight variation on original horizontal 3D printed, horizontal table stand (above) but now at a higher, maximum angle to increase on-axis listening experience.

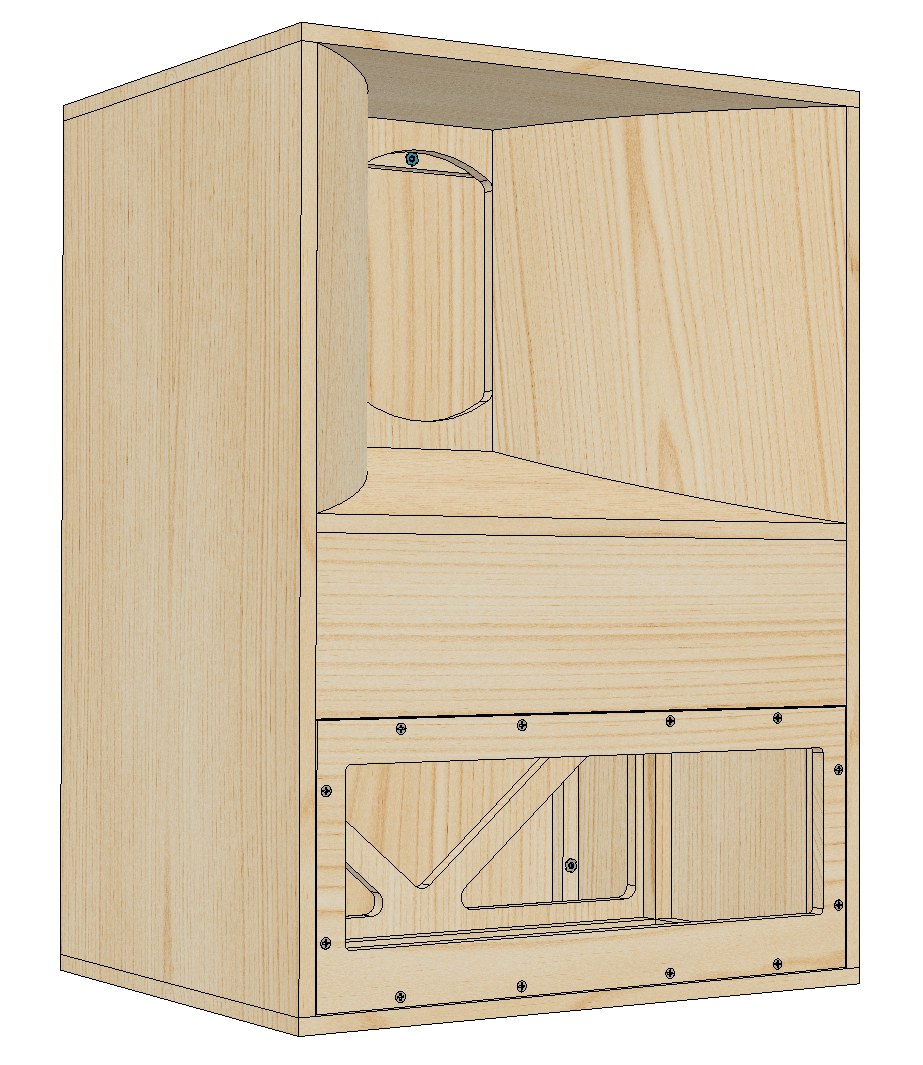

Step file of Altec A7 loudspeaker cabinet assembly. This design features the updated geometry added during the project itself and does not reflect the exact internal geometry of an original A7 828 cabinet.
STL file for printable throat adapter for Tymphany Peerless DFM-2544 Compression Driver to connect to JBL 2360 bi-radial horn. The model is split in half to make it possible to print without using support material. Two pieces are needed to make one throat adapter. This adapter has a 1” entry and 2” exit diameter. Axial length is 1.469” (37.31mm).
STL file for printable desk / table stand for Neumann KH120 A studio monitor. This version has a 12.5 degree upward angle.
COMING EVENTUALLY. STL file for printable desk / table stand for Neumann KH80 studio monitor. This version has a 15 degree upward angle. I’m clearly not hustling on this project but message me if it’s important for you.
